Toyota ALPHARD / VELLFIRE ANH20 / GGH20 2008-2015 Full Manual Set – SYSTEM Wiring Diagrams and WIRE ROUTINGand RELAY LOCATIONS
Toyota ALPHARD / VELLFIRE ANH20 / GGH20 2008-2015 Full Manual Set – SYSTEM Wiring Diagrams and WIRE ROUTINGand RELAY LOCATIONS
Manually delivered by email within 24 hours of confirmed payment, including weekends. Delivery is free. Check the description for the exact format, vehicle coverage and device requirements. No physical item is shipped.

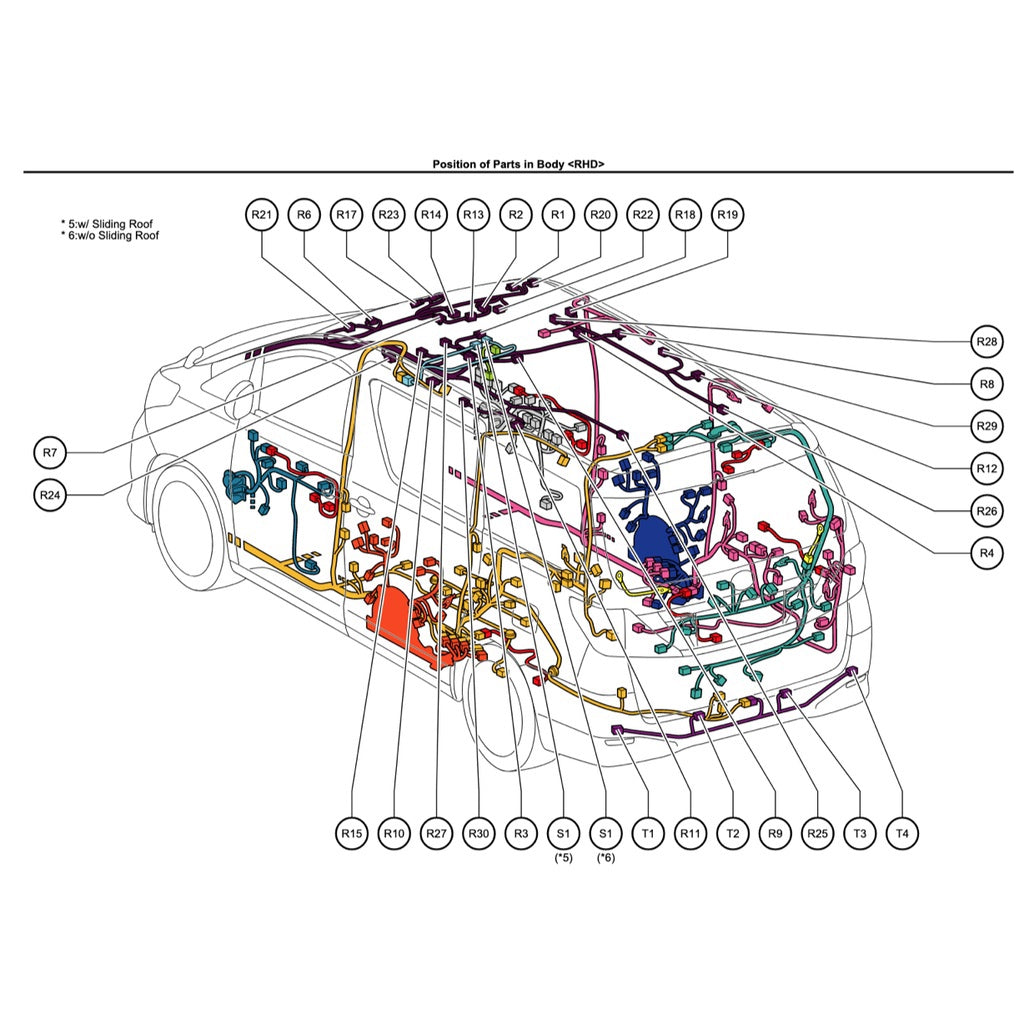

TOYOTA ALPHARD / VELLFIRE ANH20 / GGH20 (2008-2015) SYSTEMS WIRING DIAGRAMS + CONNECTORS + RELAY + WIRE ROUTING IN PDF FORMAT (1250 PAGES) .
Complete wiring diagram for Toyota Alphard/Vellfire covering engine 2AZ-FE/2GR-FE. This manuals include:

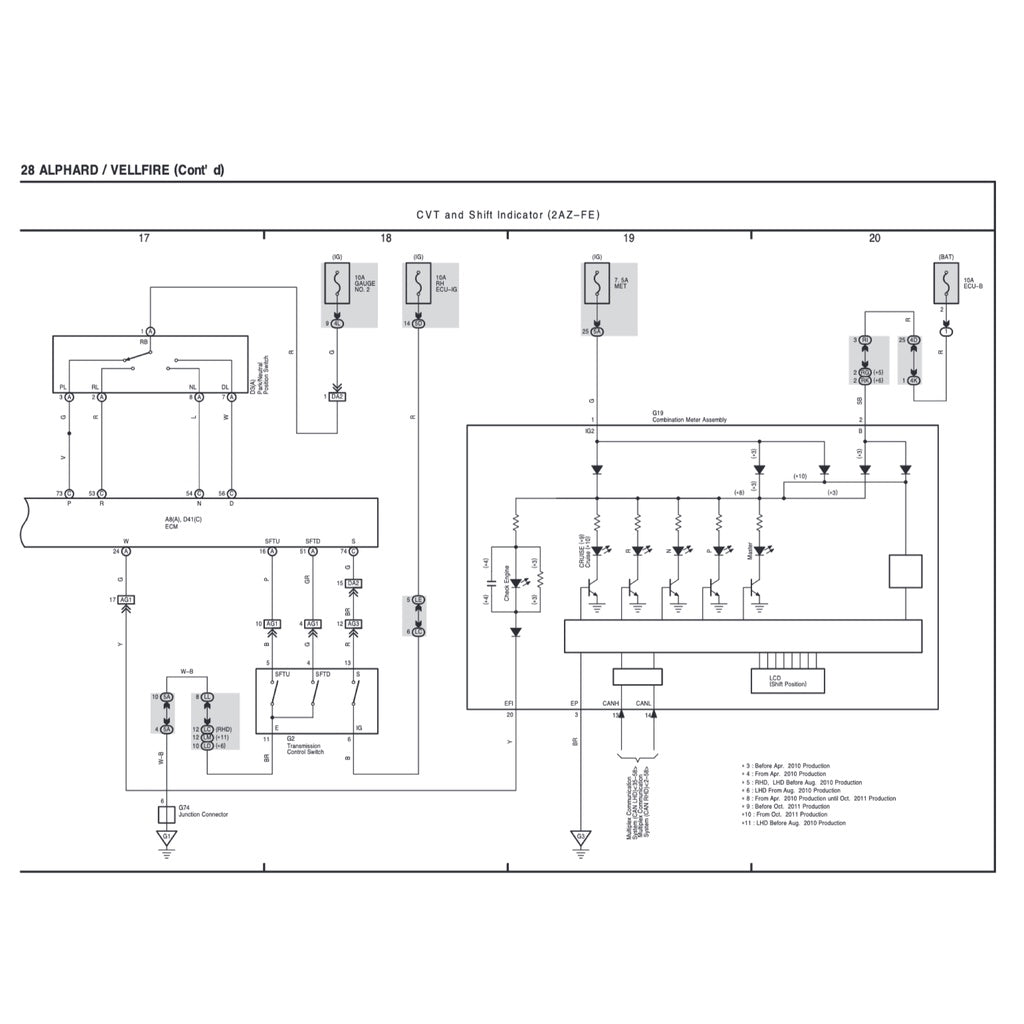

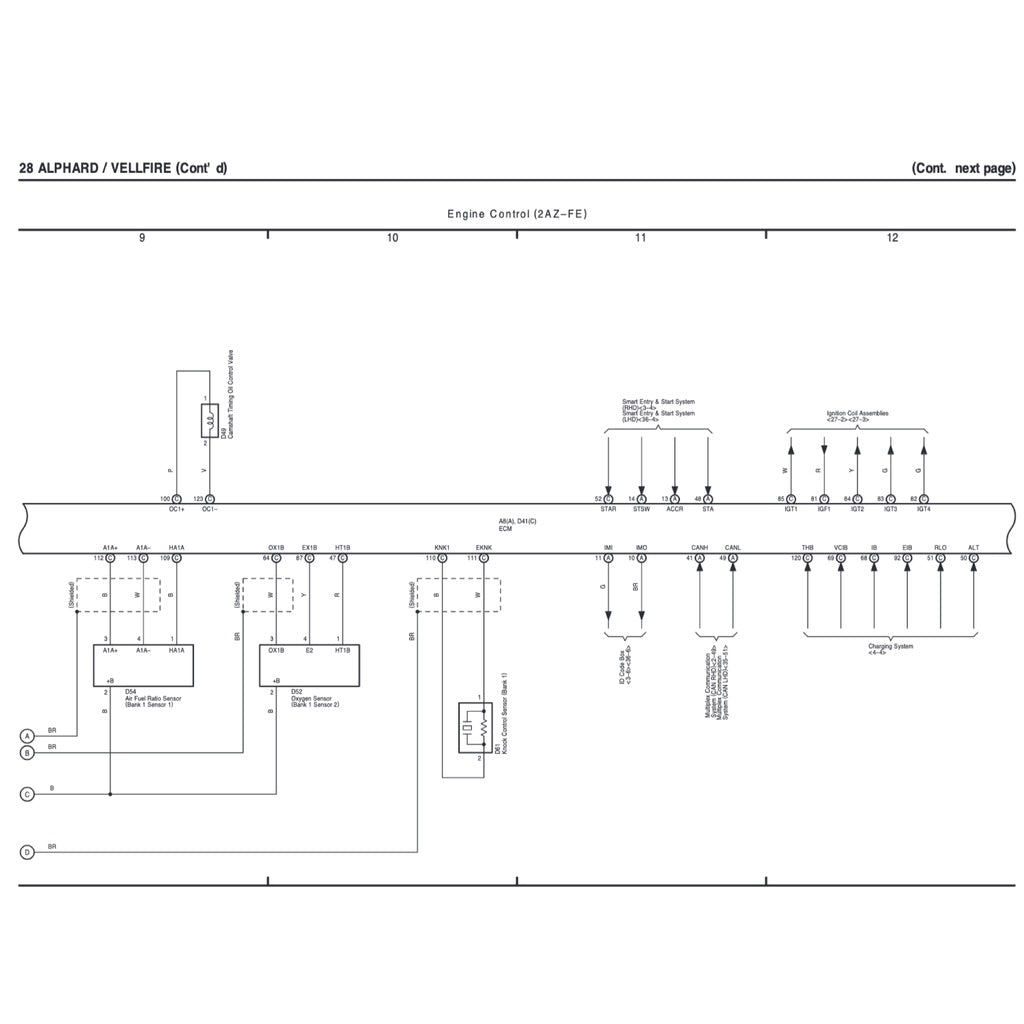

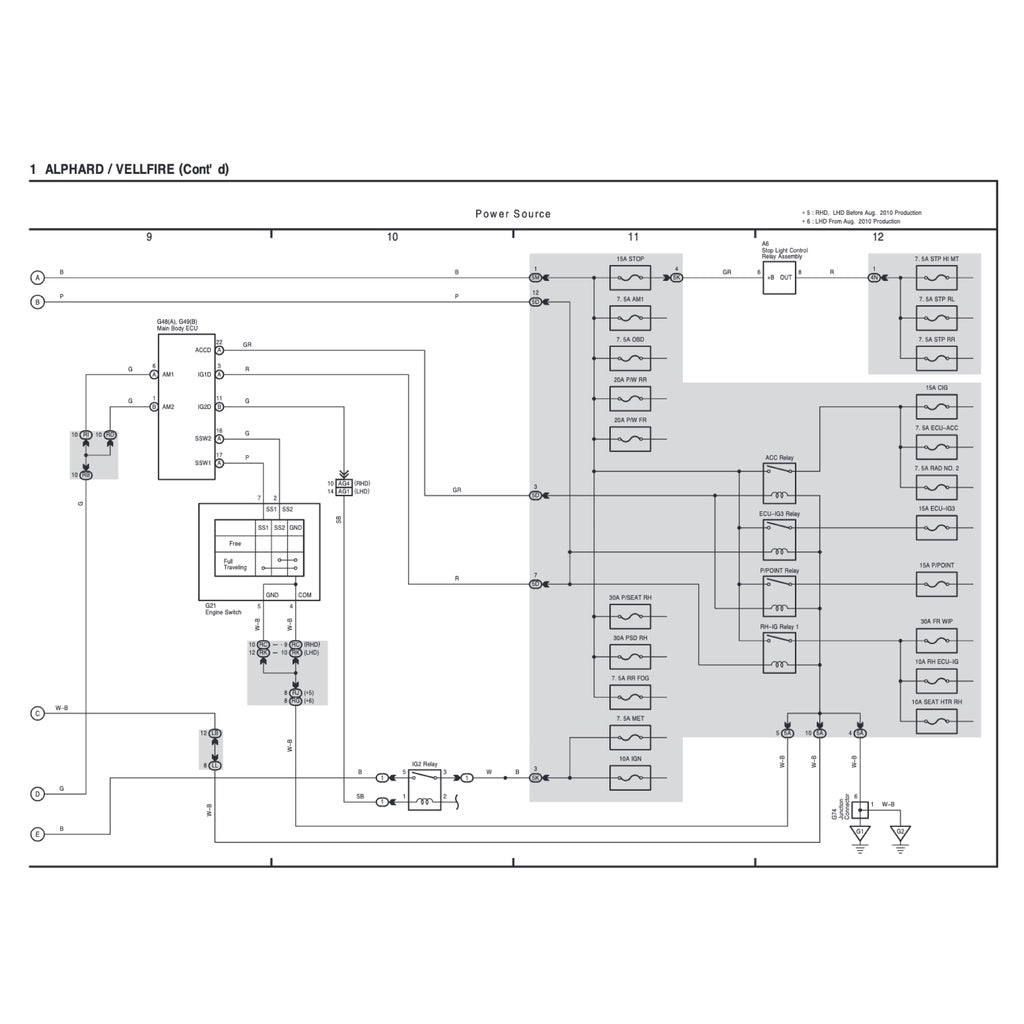

- System wiring diagrams
- Connectors

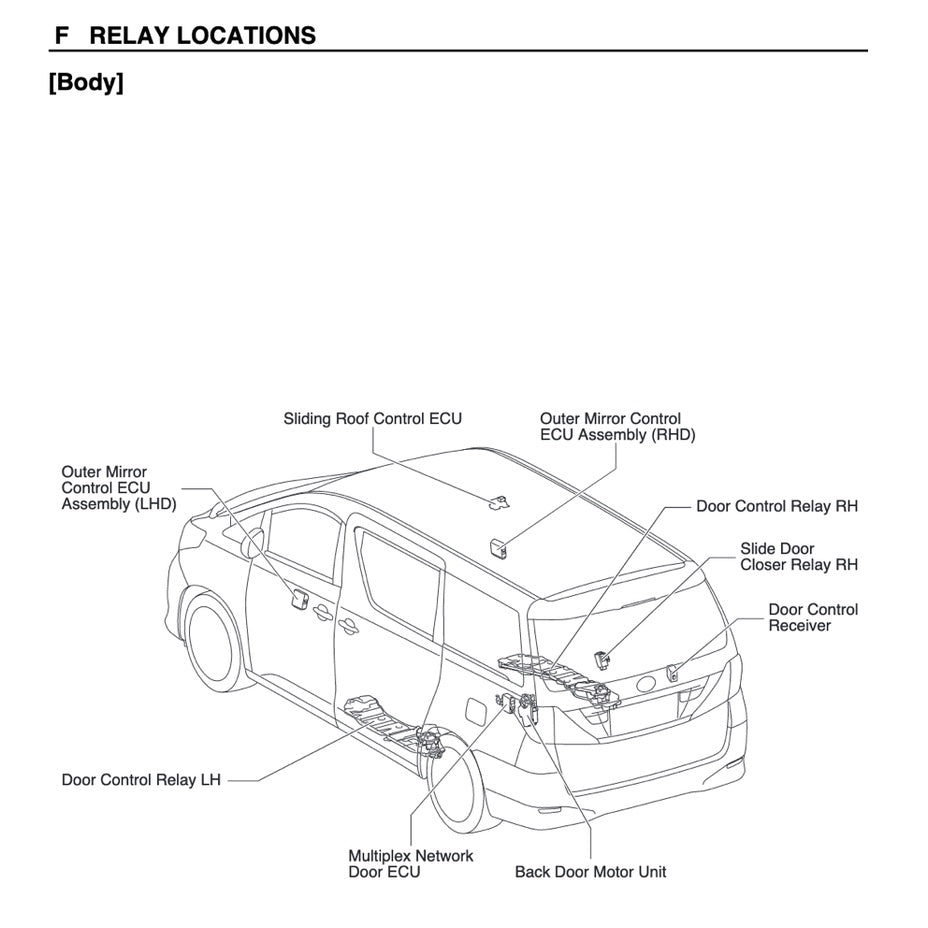

- Relay location

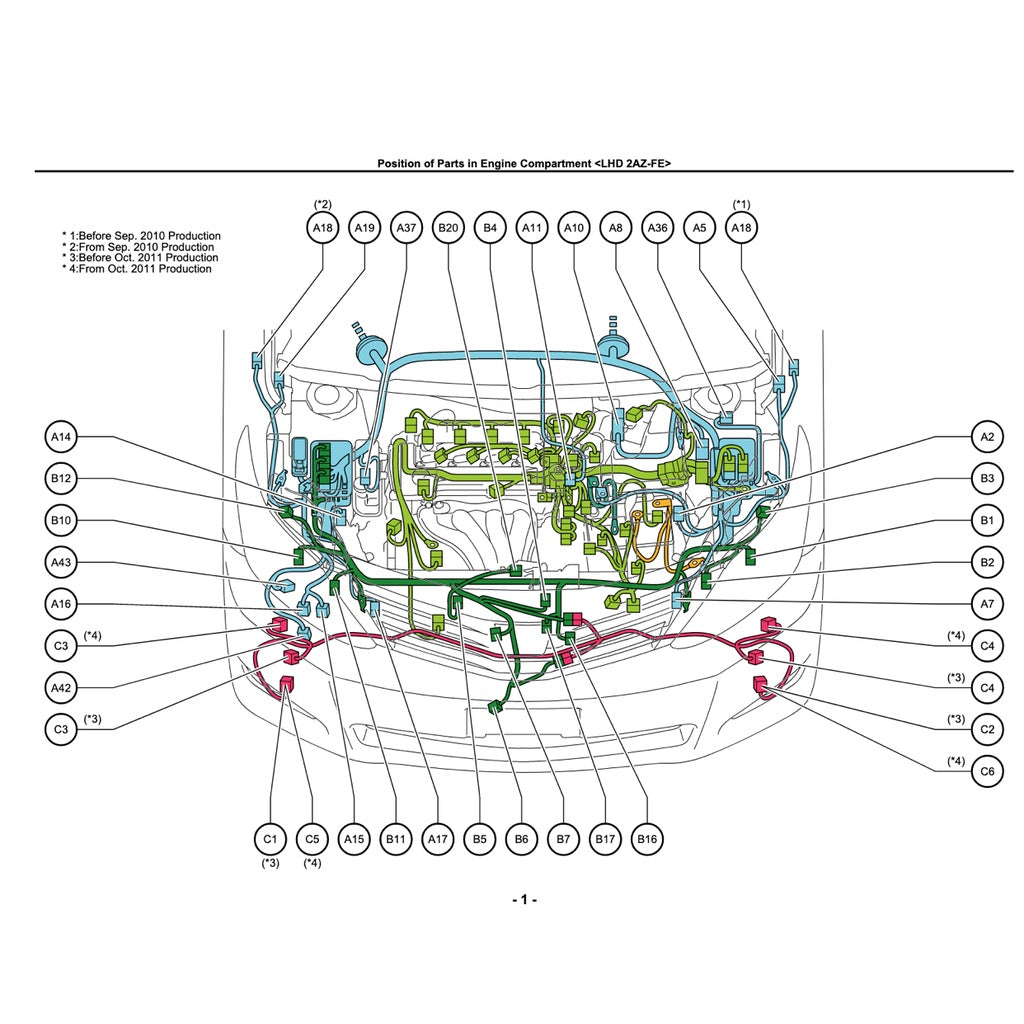

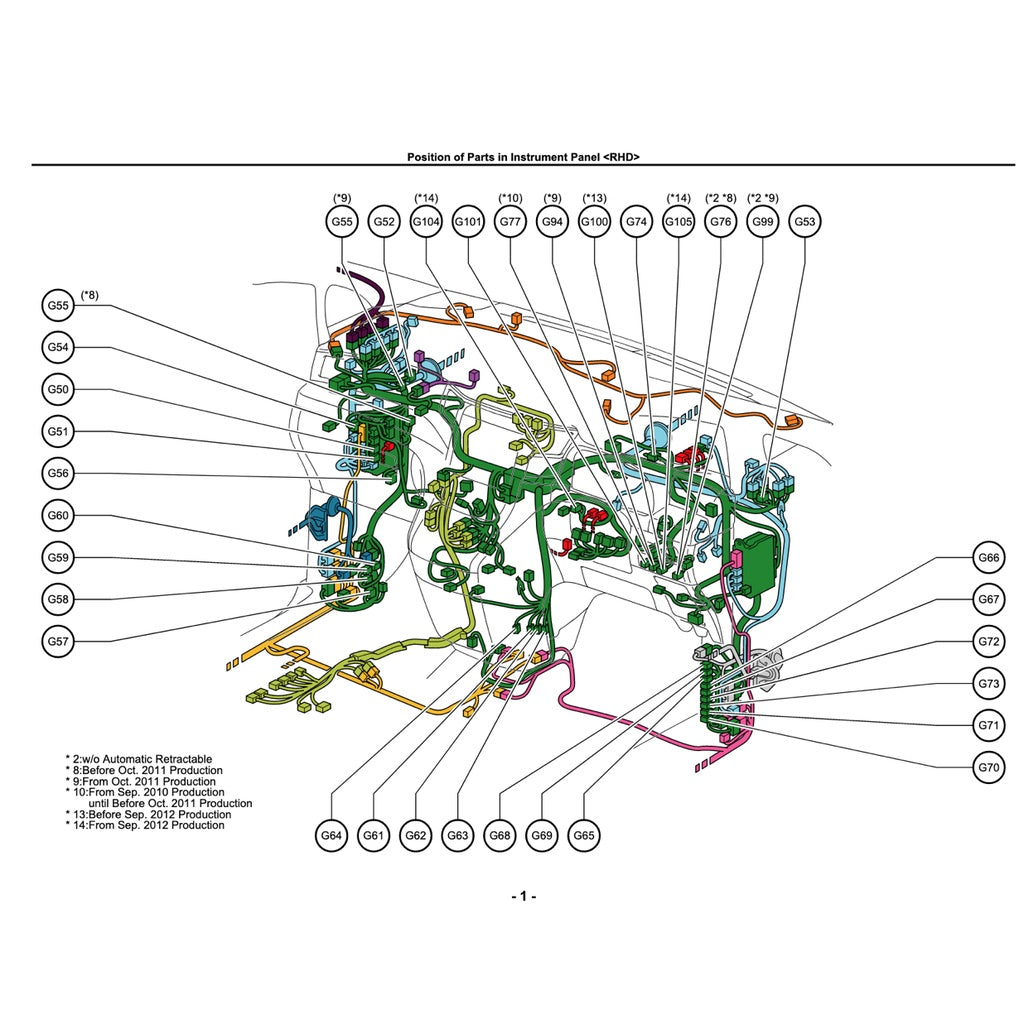

- Wire routing
Transmission
6-speed ATF U660E automatic
7-speed super CVT-i automatic
Language: English
Format: PDF (manual delivery by email within 24 hours of payment, including weekends)
